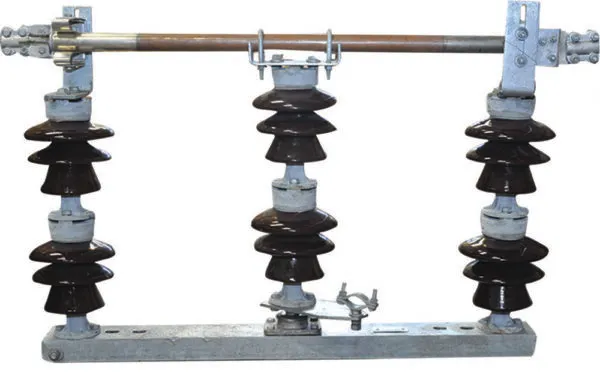

The 33 KV double break isolator switch is a critical component designed to isolate sections of the network, allowing for safe maintenance or repair. This device ensures that electrical equipment can be safely worked on without the risk of electric shock or damage.
Manufactured by Pooja Industries
What is a 33 KV Double Break Isolator?
Purpose and Functionality
A 33 KV double break isolator is a high-voltage switchgear device used to disconnect electrical circuits or equipment from the main power supply. The "double break" mechanism provides two points of interruption, ensuring complete isolation and enhancing safety.
Key features
- High Voltage Rating: Designed to handle voltages up to 33 KV.
- Double Break Mechanism: Provides two points of isolation for increased safety and reliability.
- Manual or Motorized Operation: Can be operated manually or motorized for enhanced control and safety.
Importance of Isolation in High-Voltage Systems
Ensuring Safe Maintenance
Isolators are essential for creating a safe environment for maintenance personnel by ensuring that sections of the electrical network are completely de-energized. This prevents accidental contact with live parts, reducing the risk of electric shock and equipment damage.
Key benefits
- Safety: Provides a secure means to disconnect electrical equipment from the power supply.
- Reliability: Ensures complete isolation with the double break mechanism.
- Ease of Maintenance: Simplifies maintenance operations by ensuring safe isolation of electrical circuits.
Applications of 33 KV Double Break Isolators
Critical in High-Voltage Systems
The 33 KV double break isolator is widely used in high-voltage transmission and distribution networks. It is essential for isolating electrical equipment during maintenance or repair operations, ensuring the safety of personnel and the integrity of the network.
Typical applications
- Substations: Isolate transformers, circuit breakers, and other equipment for safe maintenance.
- Transmission Lines: Disconnect sections of high-voltage transmission lines for repairs or upgrades.
- Industrial Facilities: Provide safe isolation for high-voltage equipment in industrial settings.
Installation and Operation
Professional Installation
Proper installation of 33 KV double break isolators is crucial for their effective operation. They should be installed by qualified professionals following industry standards and manufacturer guidelines.
Operating procedures
- Isolation: Ensure the isolator is fully open to disconnect the electrical equipment from the live network.
- Verification: Confirm that the isolated section is de-energized before beginning maintenance work.
Maintenance and Safety
Regular Maintenance
Regular maintenance of 33 KV double break isolators is essential to ensure their reliability and safety. Periodic inspections should check for wear and tear, corrosion, and proper functionality.
Safety tips
- Training: Ensure that all maintenance personnel are properly trained in the operation and safety procedures of the isolator and earth switch.
- Personal Protective Equipment (PPE): Use appropriate PPE to protect against electrical hazards.
- Lockout/Tagout: Implement lockout/tagout procedures to ensure the isolator and earth switch remain in the open and grounded position during maintenance.
Variations
- 33KV Double Break Isolator (800 Amps)
- 33KV Double Break Isolator (630 Amps)
