In high-voltage electrical systems, protecting equipment from overloads is critical to maintaining system reliability and safety. The 33 KV Horn Gap Fuse (HG Fuse) is an essential protective device used in outdoor electrical installations. This fuse type is designed to safeguard transformers and other equipment from overload conditions, ensuring the continuity and safety of electrical networks.
Manufactured by Pooja Industries
What is a 33 KV Horn Gap Fuse?
Purpose and Functionality

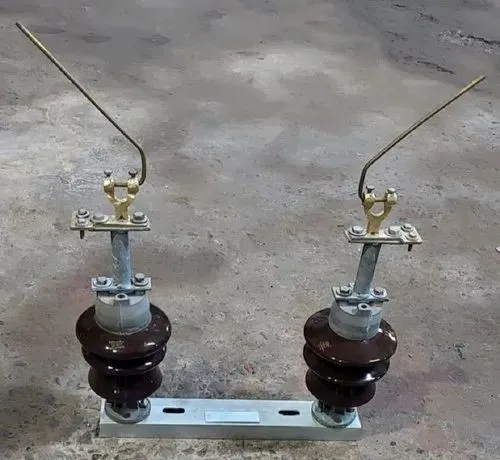

A 33 KV Horn Gap Fuse is a high-voltage protective device consisting of two contact rods bent to form the shape of horns facing upwards. These arcing horn contacts are mounted on Porcelain or Polymer insulators, which are fixed to a mounting base channel. The unique design of the Horn Gap Fuse helps in efficiently extinguishing arcs that occur during overcurrent conditions.
Key features
- High Voltage Rating: Designed for use in systems up to 33 KV.
- Horn-Shaped Contacts: Facilitates arc quenching by stretching and cooling the arc.
- Insulator Mounting: Ensures stability and insulation, using robust Porcelain or Polymer materials.
- Outdoor Installation: Ideal for protecting equipment mounted on outdoor structures.
Importance of HG Fuses in High-Voltage Systems
Overload Protection
Horn Gap Fuses are primarily used to protect electrical equipment from overloads, which can cause severe damage and disruptions. By providing a reliable means of disconnecting faulty equipment from the power supply, HG Fuses play a crucial role in maintaining system stability and safety.
Key benefits
- Protection: Safeguards transformers and other critical equipment from overload conditions.
- Reliability: Ensures that faults are effectively isolated, preventing further damage.
- Safety: Reduces the risk of equipment failure and electrical fires.
Applications of 33 KV Horn Gap Fuses
Critical in Outdoor Installations
The 33 KV Horn Gap Fuse is widely used in outdoor electrical installations where high-voltage equipment such as transformers need reliable protection. These fuses are crucial in ensuring the safe operation of electrical networks in various settings.
Typical applications
- Transformers: Protects transformers from overload conditions.
- Distribution Lines: Used on outdoor distribution lines to isolate faulty sections.
- Industrial Facilities: Provides overload protection for high-voltage equipment in outdoor industrial installations.
Installation and Operation
Professional Installation
Proper installation of 33 KV Horn Gap Fuses is essential for their effective operation. They should be installed by qualified professionals following industry standards and manufacturer guidelines to ensure optimal performance.
Operating principles
- Arc Quenching: When an overload occurs, the fuse element melts, causing an arc to form between the horn contacts. The arc is stretched and cooled as it moves upward along the horns, eventually extinguishing it.
- Isolation: The fuse effectively isolates the faulty equipment from the power supply, preventing damage.
Maintenance and Safety
Regular Maintenance
Regular maintenance of 33 KV Horn Gap Fuses is crucial to ensure their reliability and safety. Periodic inspections should be conducted to check for signs of wear, corrosion, and proper functionality.
Safety tips
- Training: Ensure maintenance personnel are trained in the correct operation and safety procedures for HG Fuses.
- Personal Protective Equipment (PPE): Use appropriate PPE to protect against electrical hazards during maintenance.
- Inspection: Regularly inspect fuses for signs of damage or wear and replace them as necessary to maintain system integrity.
Variations
- 33KV Horn Gap Fuse (400 Amps)
- 33KV Horn Gap Fuse (630 Amps)
