In high-voltage electrical systems, the ability to safely isolate and reconnect lines is critical for maintenance and operational efficiency. The 11 KV Gang Operated Air Break (GOAB) Switch is a vital component designed for this purpose. Widely used in primary transmission and sub-transmission lines, as well as substations, this switch ensures the safe and reliable operation of high-voltage systems.
Manufactured by Pooja Industries

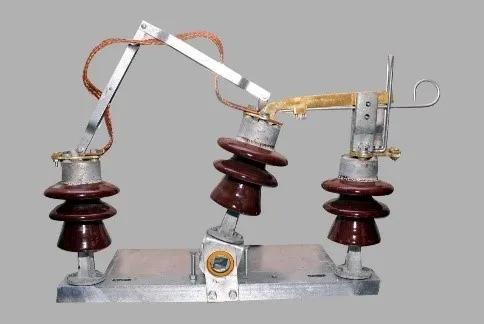

What is an 11 KV Gang Operated Air Break (GOAB) Switch?
Purpose and Functionality
An 11 KV Gang Operated Air Break (GOAB) Switch is a high-voltage switchgear device used to isolate high-tension (HT) lines and transformers from the power supply. The "gang-operated" mechanism means that all three phases of the switch operate simultaneously, ensuring complete isolation of the circuit.
Key features
- High Voltage Rating: Designed for use in systems up to 11 KV.
- Gang Operation: Simultaneous operation of all three phases for complete circuit isolation.
- Manual or Motorized Operation: Can be operated manually or with a motor for enhanced control and safety.
- Air Break Mechanism: Uses air as the interrupting medium to quench arcs during switching.
Importance of GOAB Switches in High-Voltage Systems
Ensuring Safe Isolation
GOAB switches are crucial for isolating sections of the electrical network, allowing for safe maintenance and repair operations. They are also used to disconnect transformers from HT lines, ensuring that maintenance can be performed without the risk of electric shock or equipment damage.
Key benefits
- Safety: Provides a secure means to disconnect HT lines and transformers from the power supply.
- Reliability: Ensures complete isolation with simultaneous operation of all three phases.
- Versatility: Suitable for use in primary transmission, sub-transmission lines, and substations.
Applications of 11 KV GOAB Switches
Critical in High-Voltage Systems
The 11 KV GOAB Switch is widely used across various high-voltage installations. Its primary function is to ensure safe and reliable isolation of electrical circuits, making it an indispensable component in high-voltage power networks.
Typical applications
- Primary Transmission Lines: Isolate sections of primary transmission lines for maintenance or emergency repairs.
- Sub-Transmission Lines: Disconnect sections of sub-transmission lines to facilitate safe operation and maintenance.
- Substations: Used in substations to isolate transformers and other equipment from HT lines.
- Transformer Substations: Provide safe isolation for transformers, ensuring maintenance can be carried out without risk.
Installation and Operation
Professional Installation
Proper installation of 11 KV GOAB switches is crucial for their effective operation. They should be installed by qualified professionals following industry standards and manufacturer guidelines to ensure optimal performance and safety.
Operating principles
- Isolation: When the switch is opened, it creates a physical gap in the circuit, ensuring complete isolation.
- Arc Quenching: The air break mechanism quenches any arcs that may form during the switching operation, preventing damage and ensuring safety.
Maintenance and Safety
Regular Maintenance
Regular maintenance of 11 KV GOAB switches is essential to ensure their reliability and safety. Periodic inspections should be conducted to check for wear, corrosion, and proper functionality.
Safety tips
- Training: Ensure maintenance personnel are trained in the correct operation and safety procedures for GOAB switches.
- Personal Protective Equipment (PPE): Use appropriate PPE to protect against electrical hazards during maintenance.
- Inspection: Regularly inspect fuses for signs of damage or wear and replace them as necessary to maintain system integrity.
